Professional know-how, high quality materials & workmanship, 18–24 months warranty, reasonable price and responsible after-sales service. We are the top vendor for Water Cooling & Sunoptics Skylights in Vietnam & Indonesia.
With over 20 years of experience in Water Based Evaporated Technology and Energy Saving Concepts in mind, we provide good workmanship for the industrial and commercial markets.
In the need of a cooling and bright workspace, always go for Winspeed. Look no further!
Winspeed is the supplier for the manufacturer/OEM factories which manufacture:
** All trademarks are the property of their respective owners.
Winspeed is the supplier for the largest private sportswear company from Taiwan for its factories in Vietnam. Professionalism is the first priority requirement for the project!
Our customer is one of the largest knitwear manufacturers in the world — 1 out of every 3 Americans wears a shirt from our customer's factories around the world.

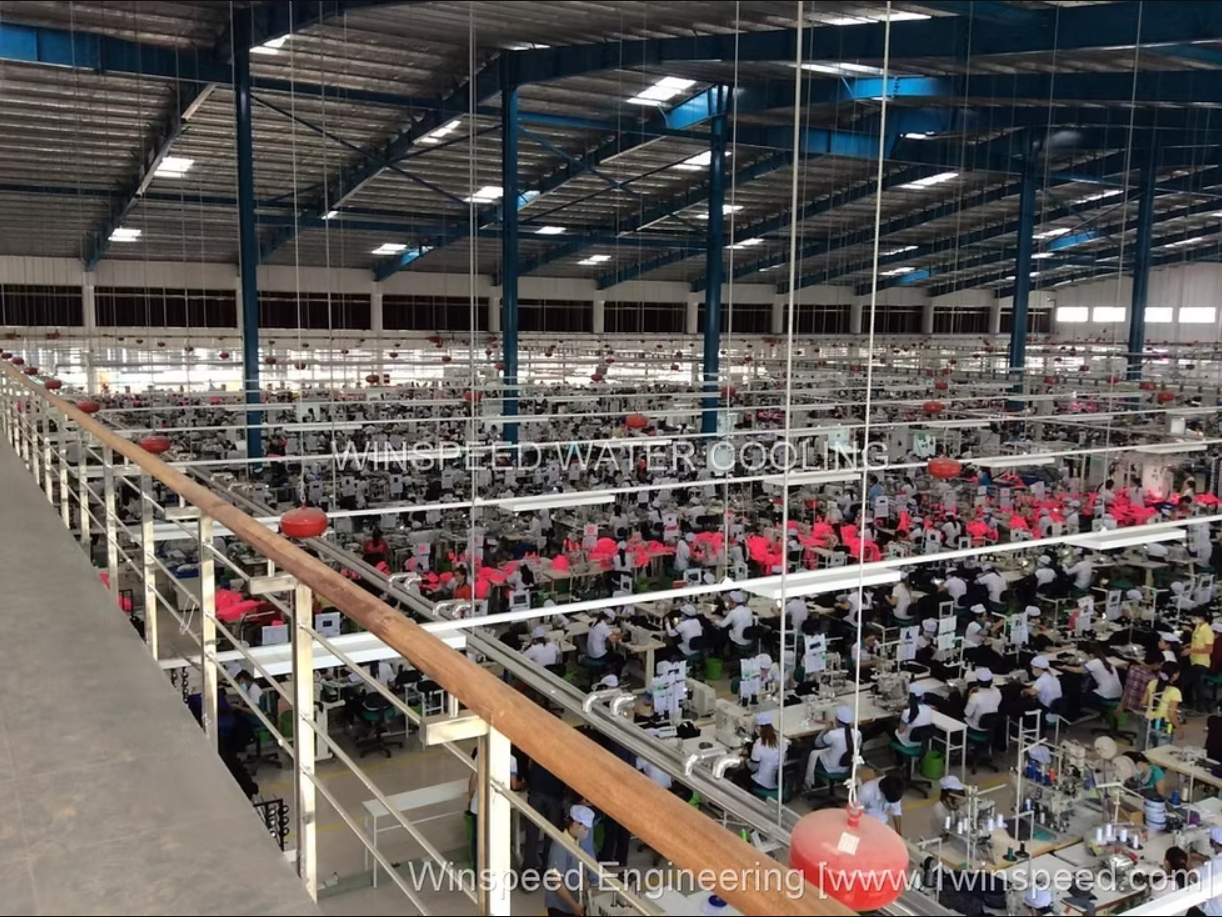

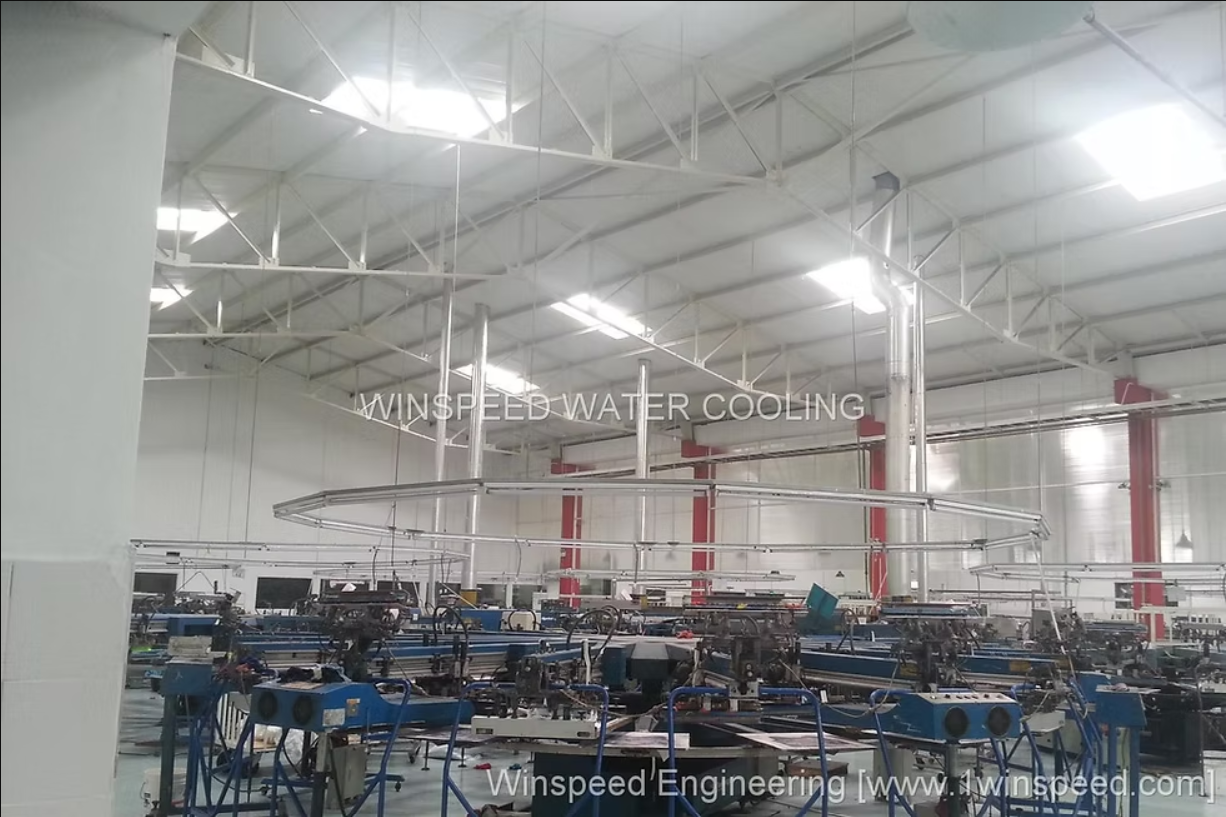

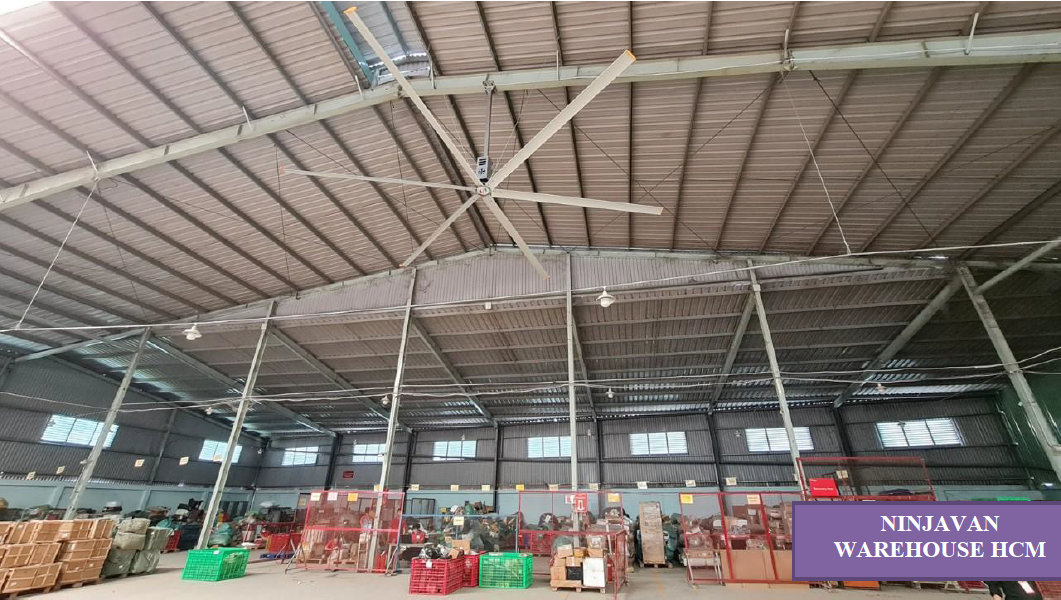

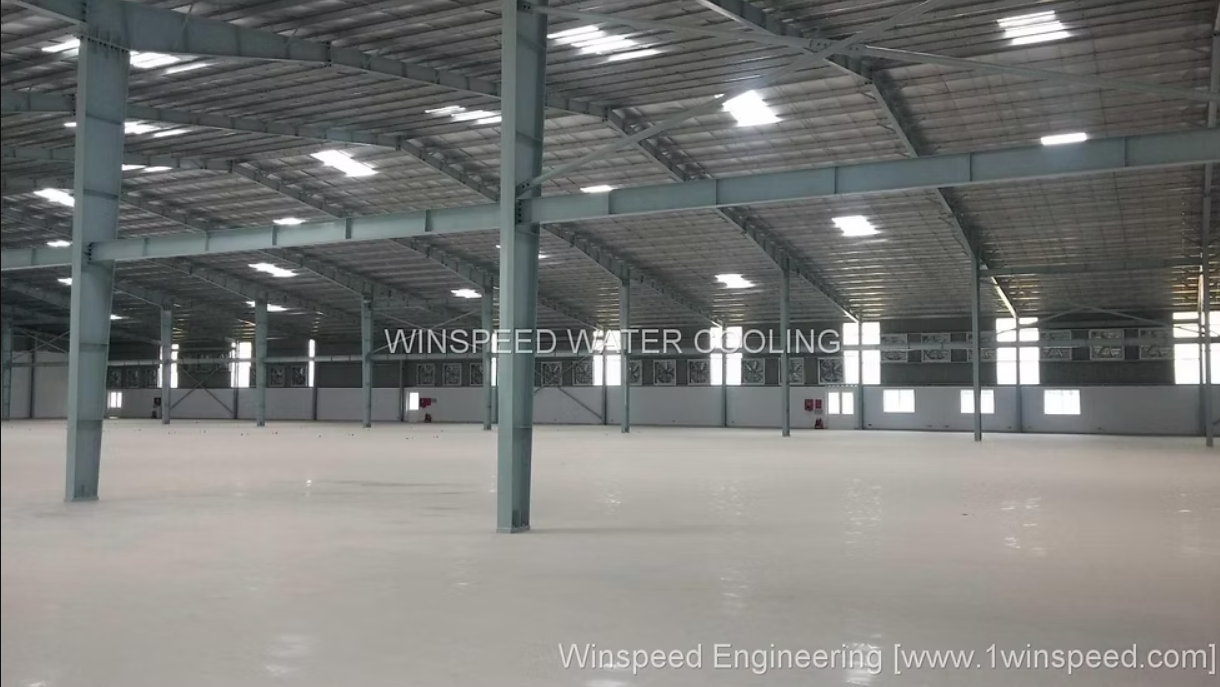

A selection of factories and OEM production sites where Winspeed's cooling and skylight systems are installed.
Evaporative air cooling is a natural, age-old practice. Winspeed only builds climate-friendly cooling solutions — we are contributing to the world going green.
People living in the desert use various methods of evaporative cooling — where evaporation of water is used to cool the air — when temperatures soar. The practice is not new: in the old days, people would often hang water-soaked bed sheets or blankets in windows and doorways and rely on natural wind or fans to pump air through the moist cloth to cool the room.
Evaporative air coolers — a refined concept of the age-old practice — provide an alternative to refrigerated air conditioning.
Why does natural evaporation lower temperatures? Evaporation takes place throughout the day — for example, we perspire in hot weather, and the water vapour produced by sweating takes heat away from our body as it is exposed to air. Whenever dry air passes over water, the water is absorbed by the air. That is why evaporative cooling naturally occurs near waterfalls, rivers, lakes and oceans — the hotter and drier the air, the greater the water absorption.
Tomorrow's world needs environment-friendly, energy conserving solutions and products. With increasing global warming and environmental degradation, people around the world recognise that businesses must act responsibly and offer green products to customers. Winspeed enables people across the region to capitalise on eco-friendly, energy-saving air cooling technologies as a serious alternative to harmful and inefficient air conditioners.
Air coolers are green. Let's compare evaporative air coolers with air conditioners to find out what makes them green.
Air coolers consume up to 10 times less energy than ACs. They consume less electricity and can also work in low voltage areas. Monthly electricity bills are significantly lower.
Air coolers require low maintenance; you rarely need to summon a mechanic for maintenance or troubleshooting as in the case of ACs.
Significant environmental benefits with no harmful CFC emissions and very low power consumption. Air coolers use fresh, clean air and allow windows to stay open for better circulation — ACs recirculate stale air in a sealed room.
Explore Winspeed's product categories — from industrial ventilation and evaporative cooling to natural skylights and solar lighting.

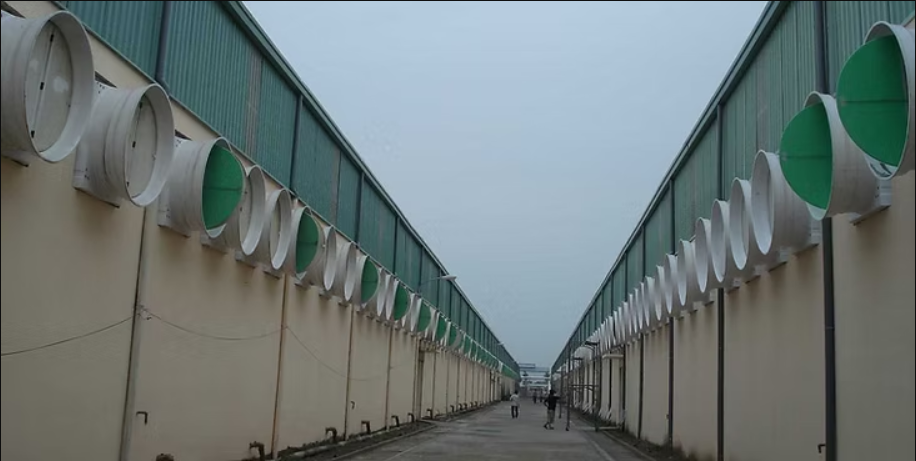

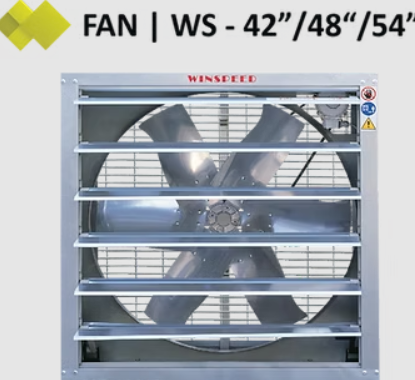

Factory Water Cooling & Ventilation System — galvanized steel and FRP exhaust fans built to move large volumes of air through big-box garment and manufacturing facilities.

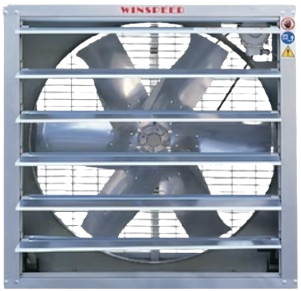

100% galvanized steel structure with 100% aluminum fan blades, built for continuous industrial exhaust duty.
| Voltage | 3 Phase 380V |
| Power | 0.55 / 0.75 / 1.1 KW |
| Exhaust Capacity | 32,500 / 37,500 / 44,500 m³/Hour |
| Noise | 63 / 65 dB |
| Weight | 55 / 65 / 75 Kg |
| Dimensions | 1380×1380×400mm (54″ / WS-54x) 1220×1220×400mm (48″ / WS-48x) 1060×1060×400mm (42″ / WS-42x) |
| Fan Belt | Standard Belt A85-WS54 |
| Motor | Made in Taiwan; assembled in China |

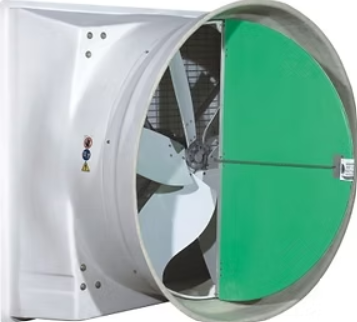

Fiber-Reinforced Plastic/Polymer casing with steel support and 100% alloy fan blades.
| Voltage | 3 Phase 380V 50Hz / 3 Phase 220V 60Hz (option) |
| Power | 1.1 KW |
| Exhaust Capacity | 47,000 m³/Hour (03 Alloy) | 45,000 m³/Hour (07 Chromed) |
| Noise / Weight | 75–78 dB / 80 Kg |
| Dimensions | 1460×1460×930mm |
| Support | Galvanized round steel with "X" supports |
| Covers | Front: Shutter | Back: Twin Door or Round Net |
| Blades | Available in 03 Blade Alloy / 07 Blade Chromed Steel |
| Motor | Made in Taiwan; assembled in China |

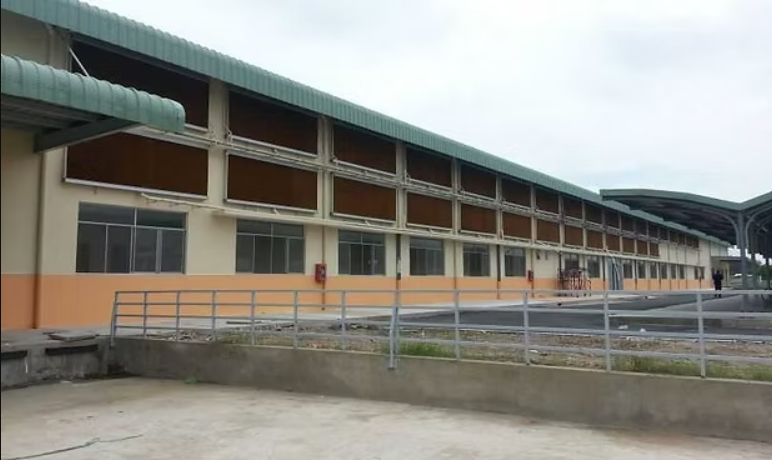

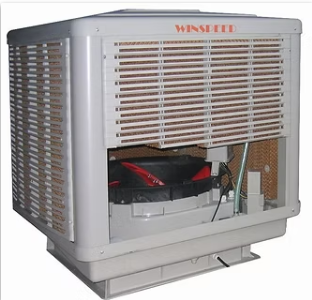

Evaporative Air Cooling System — the water cooling pads and air-cooler units at the core of Winspeed's factory cooling systems.

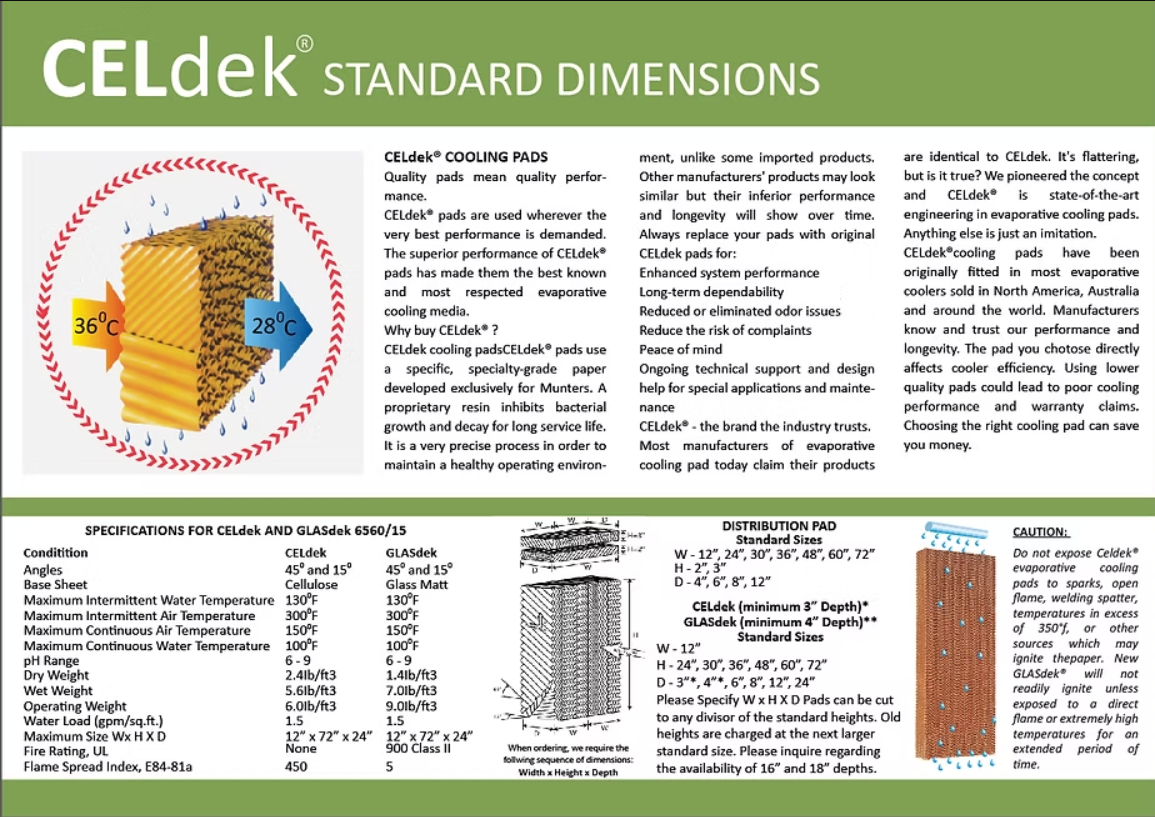

CELdek® is made from a special high cellulose material, which is impregnated to resist degradation.
The CELdek® unique cross-fluted design of the pads induces highly turbulent mixing of air and water for optimum heat and moisture transfer. CELdek® further enhances this design using unequal angles in the slope of the corrugations. The 45 degree and 15 degree corrugations are offset to continually direct the water to the air entry side of the pad
Permanent evaporative cooling solutions engineered to provide reliable, energy-efficient cooling for large industrial and factory spaces.
| Voltage | 3 Phase 380V 50Hz / 1.1Kw (01 Speed) |
| Voltage | 1 Phase 220V / 1.1kw; 0.75kw ; 0.55kw (03 Speed) |
| Effective Area (SqM) | 120-150 |
| Exhaust Capacity | 44,500 M3/Hour |
| Noise | 70 dB |
| Weight | 58 Kg |
| Dimensions | 1070 x 1070 x 1090 mm |
| Water usage | 20-30 Liters/Hour |
| Speed | Available in Single and Three Speed |
| Motor | Made in Taiwan; assembled in China |

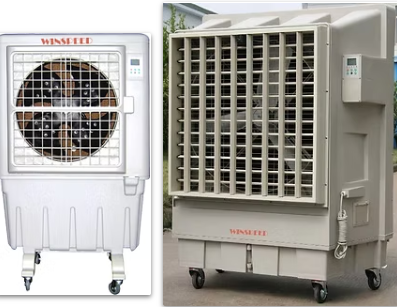

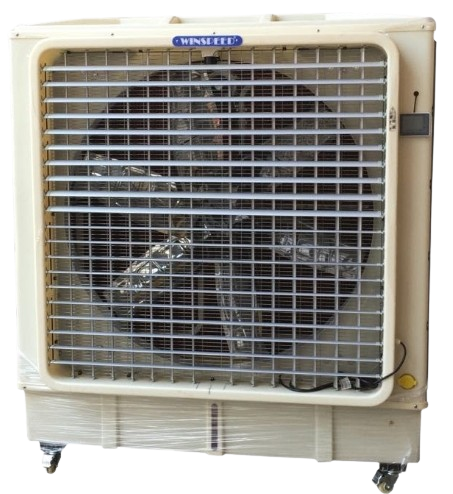

Mobile evaporative cooling units for flexible, spot-cooling deployment on the factory floor.
| Voltage | 1 Phase 220V |
| Power | 1.1KW |
| Exhaust Capacity | 44,500 M3/Hour |
| Noise | 65 dB |
| Weight | 75 Kg |
| Dimensions | 1380×1380×400mm (54″ / WS-54x) 1220×1220×400mm (48″ / WS-48x) 1060×1060×400mm (42″ / WS-42x) |
| Fan Belt | Standard Belt A85-WS54 |
| Motor | Made in Taiwan; assembled in China |

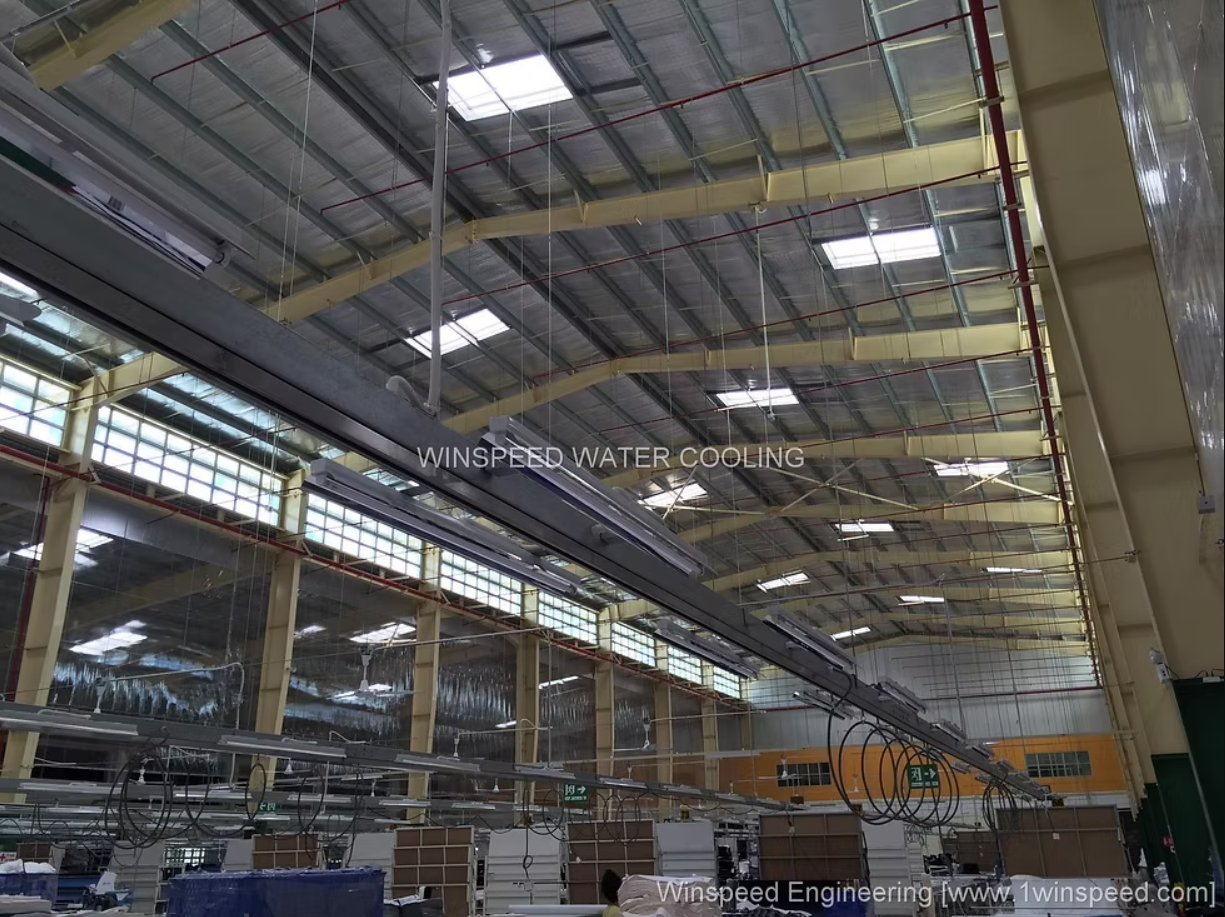

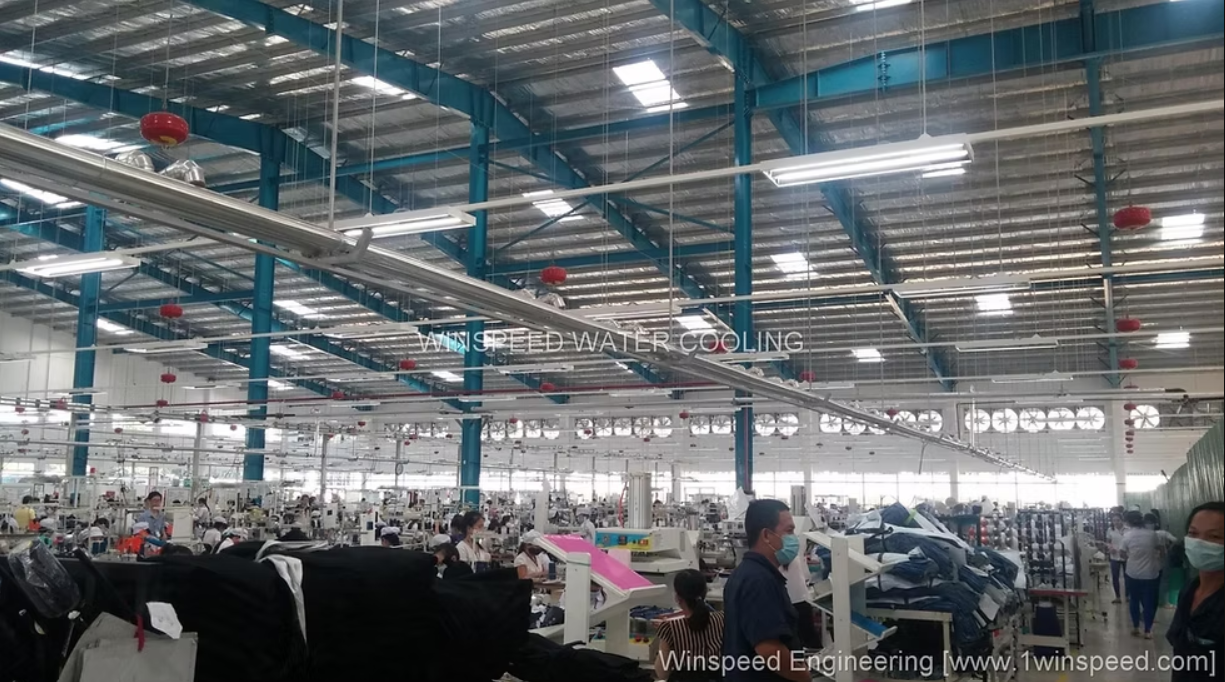

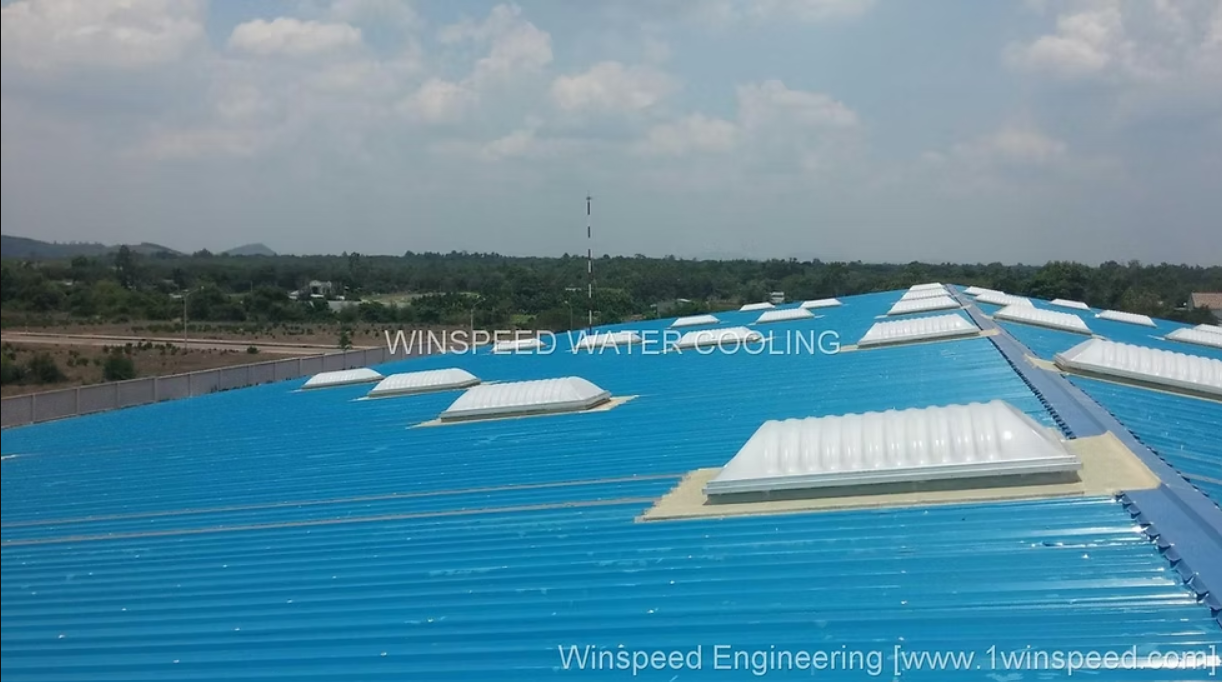

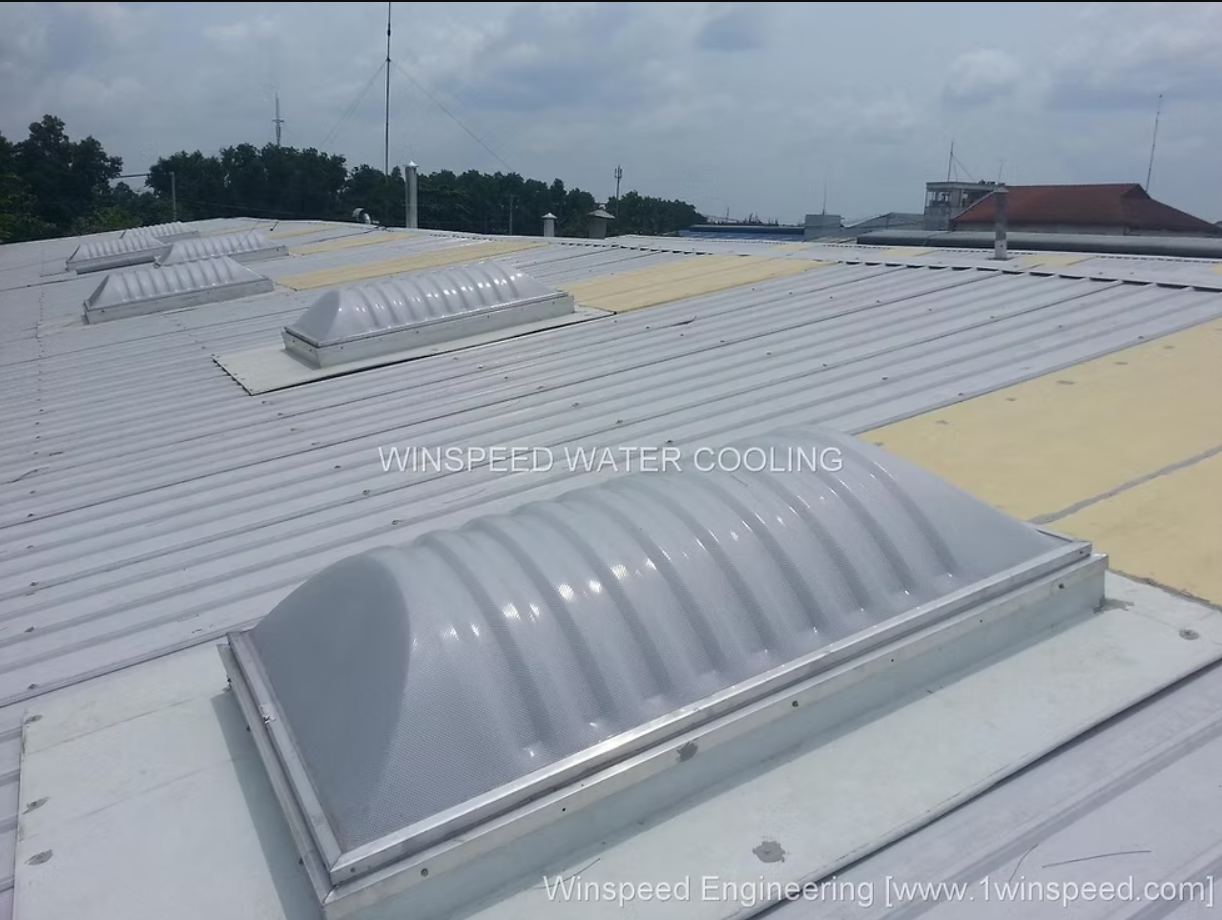

Natural Prismatic Skylight System — Winspeed is the authentic SUNOPTICS representative in Vietnam and Indonesia.
We have installed over 200 pieces of Skylights in the garment factory of our valued customer, Elite Cambodia Co., Ltd. We greatly appreciate TMI Group's support in allowing us to use their video.
LED Solar Lighting — energy-independent lighting solutions to complement Winspeed's green cooling and daylighting systems.

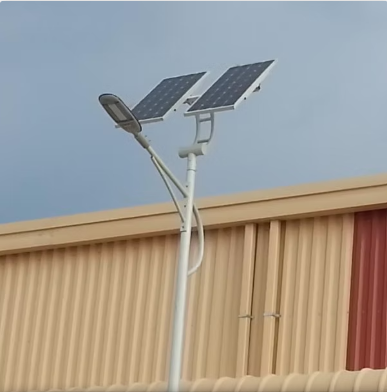

1. Solar-powered LED lighting for factory yards, walkways and exterior areas.
2. Led light Capacity: 50W, Light Effect: 95 lm/w, Color 5000K. High grade protection process, using with import chip-set with weather-proof.
3. 140W Solar Panel Composed of a single crystal solar cells, ultra-translucent glass backplane, power not less than 140W, high conversion efficiency.
4. LAMP POST 8M （Top）Lever 8 meters high, wall thickness of not less than 3.5mm.
General Trading / Import & Export.
Winspeed's Malaysia entity operates under the registered name Winspeed Trading (M) Sdn. Bhd. (Co. Reg: 985896-A), supporting the group's engineering and equipment supply activities across the region.
For import, export or general trading enquiries related to Winspeed's cooling, ventilation and skylight equipment, please reach out to the office nearest you.
Contact our teamCertified factories that use Winspeed directly, and OEM partner factories that use Winspeed systems on their behalf. Winspeed always creates a better working environment for the workers.
...and a few hundred more factories across the region.
*** The above brands are/may be registered trademarks of their respective owners.

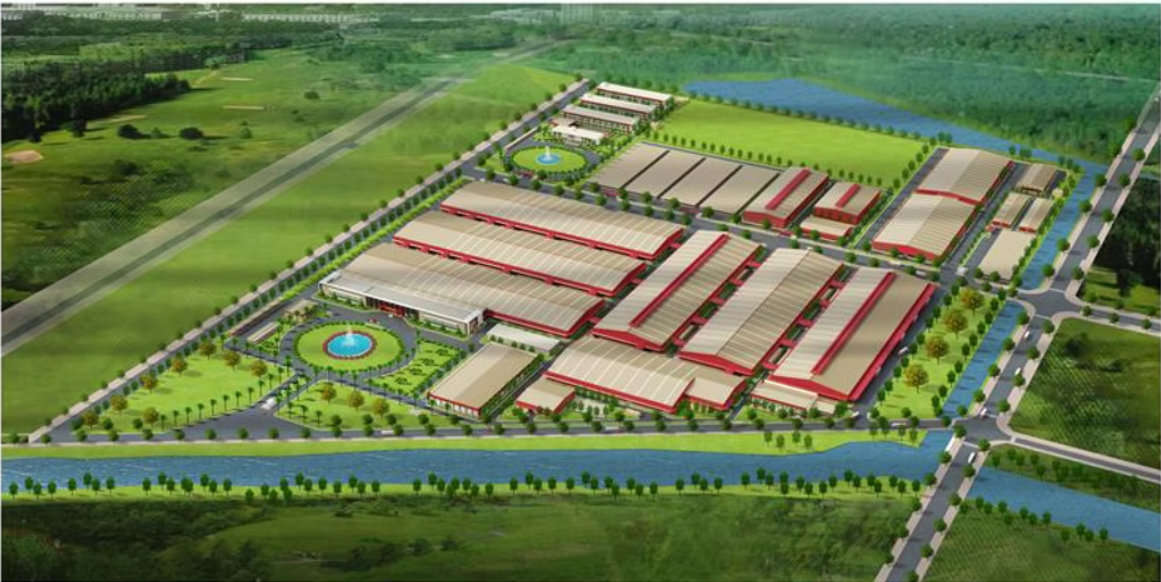

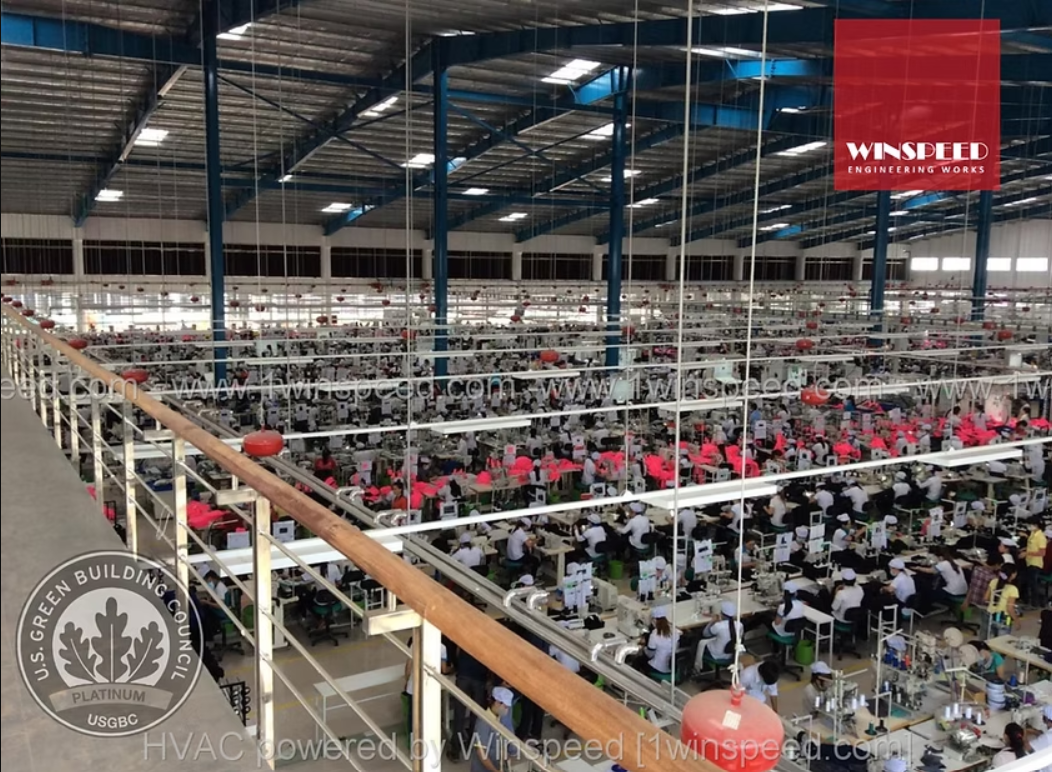

Winspeed's engineering track record includes LEED-certified factory projects and one of the largest garment-factory installations in Vietnam.
We are very proud to be one of the suppliers & partners in this project!
Read more on USGBC.orgWe are very proud to be one of the suppliers & partners in this project!
Read more on USGBC.org
Ready for some cooling time? Write to us or give us a call — we're always happy to provide a free consultation and help with any questions.
